Non-Magnetic Stainless Steel
NMS-Y non-magnetic stainless steel is based on austenitic stainless steel, and the chemical composition of the product is optimized to increase the stability of austenite.
Determine the element content, and adjust the production process of the product, so that the product processing performance is stable, and the elements are fully dissolved, which is harmful.
Contents [hide]
High Strength NMS-Y Non-Magnetic Stainless Steel Manufacturers | Suppliers | Exporters
Product Size Range
Thickness: 0.06-0.5mm
Width: 3-480mm
Steel Characteristics
It is suitable for non-magnetic austenitic stainless steel in general corrosive environments such as electronic products, clothing, and elastic components.
The combination of unique composition design and advanced production technology can ensure non-magnetic effect under cold working conditions. the material has the following advantages:
1. Good corrosion resistance and processing performance, especially under cold working conditions, the product always maintains a non-magnetic state.
2. Good work hardening performance to ensure stable product hardness.
3. The product does not need annealing or degaussing treatment, which can meet the non-magnetic requirements of different products.
Non-Magnetic Stainless Steel Data Sheet
Chemical Composition
NMS-Y non-magnetic stainless steel is based on austenitic stainless steel, and the chemical composition of the product is optimized to increase the stability of austenite.
Determine the element content, and adjust the production process of the product, so that the product processing performance is stable, and the elements are fully dissolved, which is harmful.
Special material for non-magnetic stainless steel that does not precipitate.
Ingredient representative value
| Steel Grade | C | Si | Mn | Cr | Ni |
|---|---|---|---|---|---|
| NMS-Y | 0.097 | 0.485 | 14.292 | 16.29 | 4.39 |
Mechanical Behavior
Product processing hardness range: soft state – HV530
| Hardness | HV | YS | TS | EL |
|---|---|---|---|---|
| Soft State | ＜200 | ≥205 | ≥515 | ≥40 |
| 1/4H | 200-250 | ≥400 | ≥650 | ≥15 |
| 1/2H | 250-310 | ≥675 | ≥780 | ≥6 |
| 3/4H | 310-370 | ≥800 | ≥930 | ≥3 |
| H | 370-410 | ≥950 | ≥1130 | – |
| EH | ＞410 | – | – | – |
Physical Properties
Density （×103 Kg/m3） | Elastic Modulus (GPa) | Thermal Conductivity (W/M.K100℃) | Specific Heat (J/Kg℃) | Resistivity（μΩ/cm） |
|---|---|---|---|---|
| 7.93 | 197 | 16.3 | 503 | 69 |
Machining Magnetic
With good work hardening ability, through cold working, the material strength can be significantly improved, and the highest hardness can reach HV500
about. NMS-Y is a steady-state austenite structure, no martensitic transformation occurs during cold rolling, and the magnetic permeability has no obvious change in the whole process.

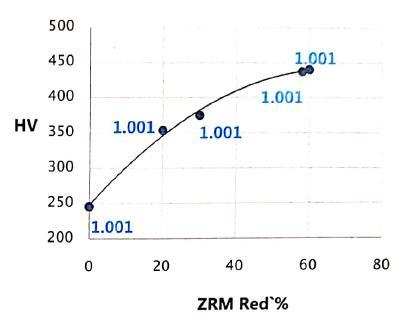

Meet the requirements of non-magnetic properties of materials for various processing. The cold work hardening curve is shown in the figure:
Application of Non-Magnetic Stainless Steel
What Makes Stainless Steel Non Magnetic?
When high chromium and nickel are added to the steel (the chromium content is about 18%, and the Ni content is more than 4%), the internal structure of the steel presents a structure called austenite, which is non-magnetic and cannot be attracted by magnets.
