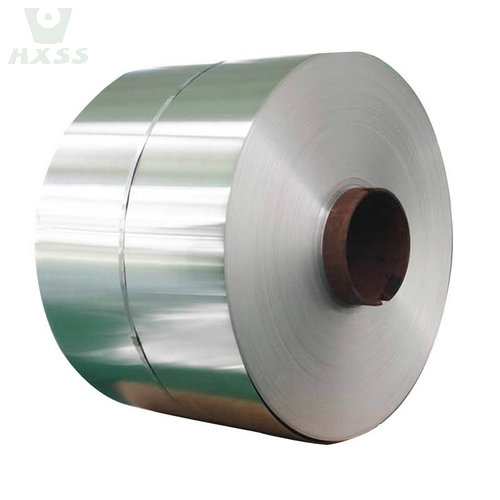

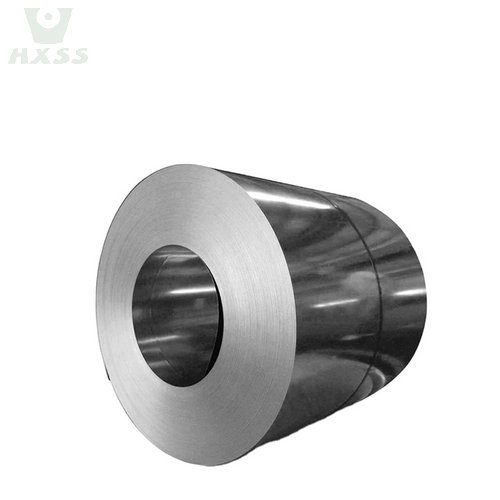

Precision Stainless Steel Coil
Four-column 20-roller mill, with advanced AGC thickness automatic control and AFC straightness automatic control. The slant feature of this mill is more conducive to straightness control. The coiler is driven by a double motor, which can precisely control the tension during rolling. It provides a full range of guarantees for rolling high-strength and high precision stainless steel strips. The thickness control accuracy is up to 0.001mm, It is one of the most advanced mills in the world.
Contents [hide]
Precision Stainless Steel Coil Manufacturer | Supplier | Exporter

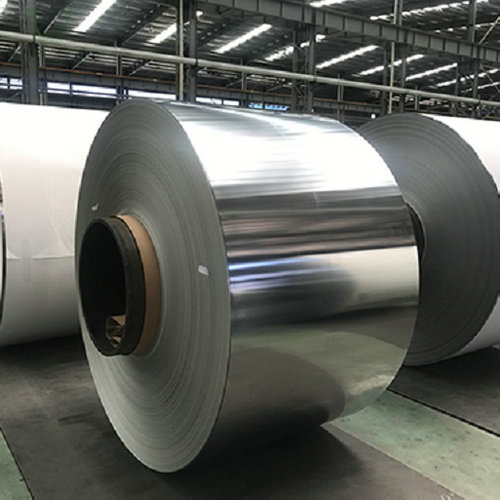

Range of Precision Stainless Steel Coil
| Product Name | Precision Stainless Steel Coil | Standard: | ASTM， AISI， JIS， GB， DIN， EN |
|---|---|---|---|
| Thickness: | 0.01-200mm, etc. | Surface: | BA，2B， NO.1， NO.4， HL，8K, etc. |
| Length: | 2000mm, 2438mm, 3000mm, 5800mm, 6000mm,12000mm， etc | Certification: | ISO, SGS，BV, etc. |
| Width: | 40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc | Technique: | Cold Rolled, Hot Rolled |
Huaxiao can provide precision stainless steel sheets, precision stainless steel coil, and precision stainless steel strips of different grades and sizes.
4 column 20-high rolling mill
Four-column 20-roller mill, with advanced AGC thickness automatic control and AFC straightness automatic control. The slant feature of this mill is more conducive to straightness control. The coiler is driven by a double motor, which can precisely control the tension during rolling. It provides a full range of guarantees for rolling high-strength and high-precision strips. The thickness control accuracy is up to 0.001mm, It is one of the most advanced mills in the world.
All H2 BA Line for precision stainless steel coil
Our bright annealing line is the first full hydrogen vertical muffle annealing furnace in China. Dewpoint is controlled below -55℃, with full hydrogen protection and precise tension control to ensure the strip surface quality and performance well after annealing.
All H2 Bell Type Annealing Furnace
Full hydrogen gas, precise temperature control, effectively eliminate the internal stress and work hardening rolling, to obtain good cold working performance, to ensure the stability of the coil after annealing, providing a powerful guarantee for the production of high-carbon martensite.
Precision stainless steel coil Leveler Equipment
Twenty-three roller straightening machines, the minimum roll diameter is 12mm, a unique process tension control device to effectively improve the strip straightness and mechanical properties, the straightness can up to 1IU.
Longitudinal cutting Equipment
The cut strip’s minimum width is3mm, and the tolerance is 0.015mm. The leveler can cut hardening strips whose strength reaches 2100 N/mm2. Trimming different dimension strips according to customer’s requirements.
Burr-free and full round edge Equipment
According to customers’ requirements, to produce different edge shapes of the strip below is the edge shape, square edges, square with round edges, round edges, and other customized edges, to meet different customer needs.

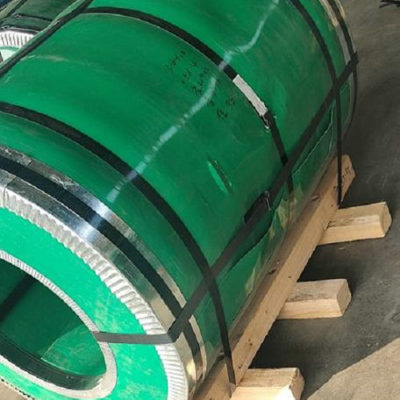

Package of Precision Stainless Steel Coil
We usually use conventional export packaging standards, and then put about 10 packs of desiccant in the container.
If customers have other packaging requirements, we can also adjust the packaging according to customer requirements.
