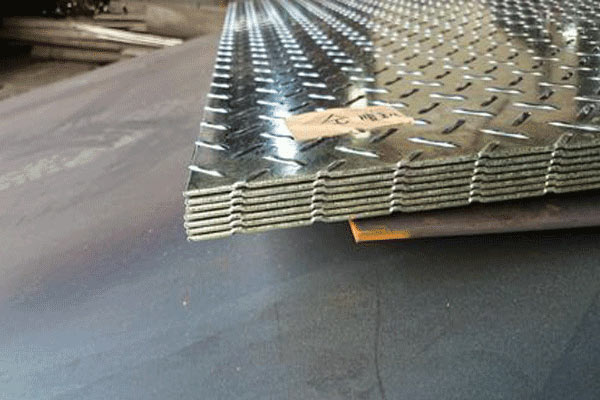

316 Stainless Steel Checkered Plate
Our 316 stainless steel checkered plates are manufactured with high-quality stainless steel material for corrosion resistance, high strength, and formability. The unique pattern design provides better anti-slip performance and is suitable for a variety of application scenarios. We also provide a variety of specification options and high-quality service support to ensure customers get the best solution. Choose our products, you will get high-quality products and excellent service.
Contents [hide]
316 Stainless Steel Checker Plate Specifications and Applications
Our 316 stainless steel pattern plate has a variety of specifications and application scenarios. The following is the specification list of 316 stainless steel checkered plates we provide:
- Surface finish: 2B for cold rolled, BA, HL, MIRROR, NO.1 for hot rolled, NO.4, 8K.
- The standard followed: AISI, ASTM, JIS, SUS, GB
- Type: Diamond pattern, 3 bars pattern, 5 bars pattern, T pattern.
- Thickness: 0.3mm – 3mm for Cold Roll, 3mm – 12.5mm for Hot Roll.
- Width: 10mm – 600mm for strip; 600-2000mm for sheet and coil
- Length: 2000mm – 6000mm.
- Packaging: standard export packaging or customized according to customer needs
Our 316 stainless steel checkered plate is suitable for industries such as construction, automobile, food processing, or aviation, and has a wide range of application scenarios. Whether you need to use it for floors, stairs, slopes, decorations, etc., it can meet your needs.
316 Stainless Steel Checker Plate Features and Advantages
316 stainless steel checkered plate is a high-quality stainless steel product with many features and advantages. Here are some of its most notable features:
Corrosion Resistance
The main components of 316 stainless steel checkered plate are nickel and chromium, so it has extremely strong corrosion resistance. Its resistance to a wide range of chemicals and climate change allows it to perform optimally in many different applications.
High Strength and Excellent Formability
316 stainless steel checkered plate can easily meet your various project needs due to its high strength and good formability. Its high strength enables it to withstand various pressures and loads, while its excellent formability allows it to be made into various shapes and sizes.
Unique Pattern Design
The unique pattern design of 316 stainless steel pattern plates provides better anti-skid performance in applications such as floors, stairs, and slopes. Also, floral designs can add beauty and artistry to your projects.
Properties and Composition of 316 and 316L Stainless Steel Checked Plate
316 and 316L stainless steel checkered plates, also known as checkered plates, feature a raised pattern design that provides slip resistance and durability in a variety of industrial and commercial applications. These plates combine the superior corrosion resistance of 316 and 316L stainless steel with a textured surface for enhanced grip, making them ideal for flooring, stair treads, and landings in demanding environments.
316L is a low-carbon variation of 316 stainless steel that provides better weldability and reduced susceptibility to intergranular corrosion in the heat-affected zone.
Chemical Composition
316 and 316L stainless steel checkered plates have similar chemical compositions, the main difference being the carbon content, with 316L having a lower carbon content.
| Grades | C | Cr | Ni | Mo | Mn | Si | P | S | N |
|---|---|---|---|---|---|---|---|---|---|
| 316 | ≤ 0.08 | 16.0 – 18.0 | 10.0 – 14.0 | 2.0 – 3.0 | ≤ 2.0 | ≤ 1.0 | ≤ 0.045 | ≤ 0.03 | ≤ 0.10 |
| 316L | ≤ 0.03 | 16.0 – 18.0 | 10.0 – 14.0 | 2.0 – 3.0 | ≤ 2.0 | ≤ 1.0 | ≤ 0.045 | ≤ 0.03 | ≤ 0.10 |
Mechanical Properties
The mechanical properties of 316 and 316L checkered plates are similar, both offering excellent strength and durability, but 316L has slightly lower tensile strength due to its lower carbon content.
| Grade | Tensile Strength | Yield Strength | Elongation (% in 50mm) | Hardness (Brinell) | Modulus of Elasticity |
|---|---|---|---|---|---|
| 316 Staibless Steel Checkered Plate | 515 MPa (minimum) | 205 MPa | 40% | 217 (maximum) | 193 – 200 GPa |
| 316L Stainless Steel Checkered Plate | 485 MPa (minimum) | 170 MPa | 40% | 217 (maximum) | 193 – 200 GPa |
Corrosion Resistance
316 and 316L stainless steel checker plates offer excellent corrosion resistance, especially in environments containing chlorides, acids, and other aggressive chemicals. The molybdenum content (2-3%) significantly enhances its resistance to pitting and crevice corrosion.
- 316 Checker Plate: Ideal for environments requiring high corrosion resistance, such as marine and coastal areas, or environments in contact with seawater and chemical agents.
- 316L Checker Plate: Suitable for applications requiring welding, or where the material will be exposed to high temperatures without the need for post-weld heat treatment.
Slip Resistance
The raised pattern on 316 and 316L stainless steel checkerboard provides excellent slip resistance. This is especially useful in industrial and construction environments where safety is paramount. The pattern is typically diamond or teardrop-shaped, ensuring a secure grip even in wet or greasy conditions.
Weldability and Fabrication
- 316 Tread Plate: Standard 316 has good weldability but is susceptible to carbide precipitation at elevated temperatures, which reduces corrosion resistance.
- 316L Tread Plate: Its lower carbon content makes 316L a better choice for welded construction, minimizing the risk of sensitization and subsequent corrosion. Both types are easily fabricated through cutting, forming, and welding processes.
Key Differences Between 316 and 316L Checked Plate
- Carbon content: 316L has a lower carbon content (0.03% vs. 0.08% for 316), making it less susceptible to sensitization and intergranular corrosion during welding.
- Weldability: 316L is preferred for welding applications because it reduces the risk of carbide precipitation.
- Strength: 316 is slightly stronger than 316L, but 316L’s superior corrosion resistance in welded structures makes it more suitable for harsh environments.
Why Choose Our 316 Stainless Steel Checkered Plate
When you need to buy 316 stainless steel skid plates, why should you choose our product? The following are the advantages of our products:
High-Quality Material
Our 316 stainless steel skid plate uses high-quality stainless steel material, which has corrosion resistance, high strength, and excellent formability. We only choose the best materials to manufacture our products to ensure their durability and reliability.
Various Specifications
We provide 316 stainless steel skid plates with various specifications to meet various needs. You can choose different plate thicknesses, plate widths, pattern types, and surface treatments to suit different application scenarios.
Unique Pattern Design
Our 316 stainless steel checkered plate has a unique pattern design, which can provide better anti-skid performance. We provide a variety of pattern types, such as flip diamond type, linear type, etc., which can be selected according to your specific needs.
Wide Range of Application Scenarios
Our 316 stainless steel checker plates are suitable for many fields, such as construction, automotive, food processing, aviation, and other industries. Whether you need to use it for floors, stairs, slopes, decorations, etc., it can meet your needs.
Excellent Service and Support
We not only provide high-quality products but also provide excellent service and support. We have many years of experience and expertise and can provide you with customized solutions and technical support. We are committed to providing the best service and support to our customers to ensure their satisfaction.
When purchasing 316 stainless steel checkered plates, choosing our products can ensure that you get the best quality, a wide selection of specifications, unique pattern designs, and excellent service and support. We look forward to working with you to provide you with the best solution!
