Stainless Steel Checker Plate

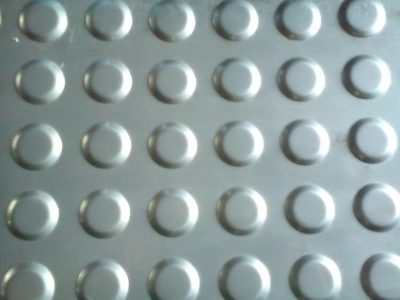

Stainless steel checker plate the aluminum also can be made to checker plate, the pattern includes lentil-shaped, diamond-shaped, round bean-shaped, dot-shaped, oblate mixed shape, etc. We can provide 201, 202, 304, 316, 430 stainless steel checker plates, etc. Please send me an inquiry and quote for you.
Contents [hide]
Stainless Steel Checker Plate Suppliers | Manufacturer | Exporter
Huaxiao Metal is one of China’s trusted suppliers, manufacturers, and exporters of quality stainless steel checkered plates. Known for their superior durability, corrosion resistance, and slip resistance, our products are ideal for a variety of applications including industrial flooring, transportation, and construction. As a leading stainless steel supplier in China, we offer competitive pricing, and a wide range of sizes and finishes to suit your specific needs. Contact Huaxiao Metal today to learn about our stainless steel checkered plate inventory and prices.
Specification of Stainless Steel Tread Plate
- The Grades of Stainless Steel Checker Plate Steel:201, 202, 304, 304L, 316L, 310S, 410, 410S, 430,316 stainless steel diamond plate, etc.
- The surface finish of stainless chequer plate:1 for hot rolled stainless steel chequer plate, 2B for cold rolled checker plate steel, No.4, BA, HL, MIRROR, etc.

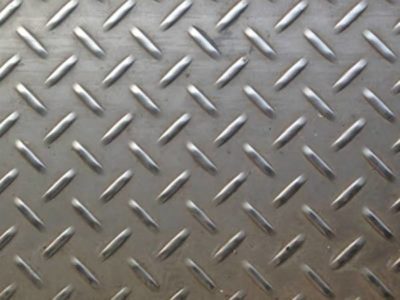

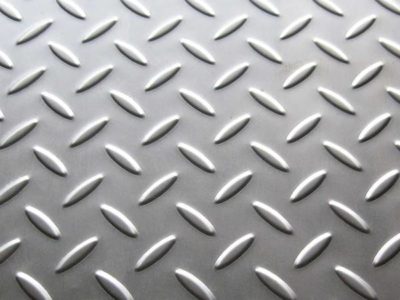

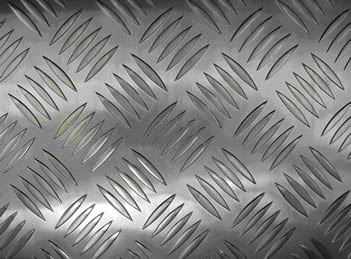

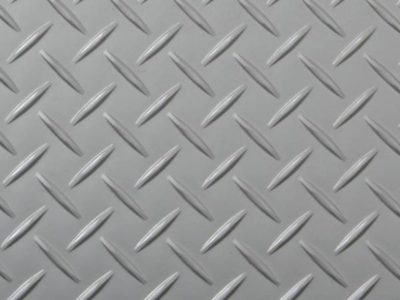

- Type: Diamond pattern, Lentil pattern, 5 bars pattern, T pattern, etc.
- Stainless Chequer Plate Thickness: 3mm – 3mm for Cold Roll, 3mm – 10mm checker plate steel/12.5mm for Hot Roll.Can be customized according to customer requirements.
- Width:10mm – 600mm for strip; 600-2000mm for sheet.Can be customized according to customer requirements.
- Length:2000mm – 6000mm, Can be customized according to customer requirements.
| Thickness (mm) | 2.3 | 3.2 | 4.5 | 6.0 | 9.0 | 12.0 |
|---|---|---|---|---|---|---|
| Max width (mm) | 1219 | 1524 | 1524 | 1524 | 1524 | 1524 |
| Maximum length (mm) | 6096 | 6096 | 6096 | 6096 | 6096 | 6096 |
Description of Stainless Steel Checker Plate/Steel Checker Plate Sheets

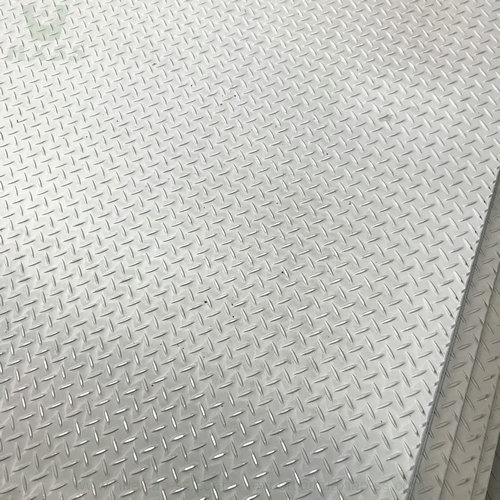

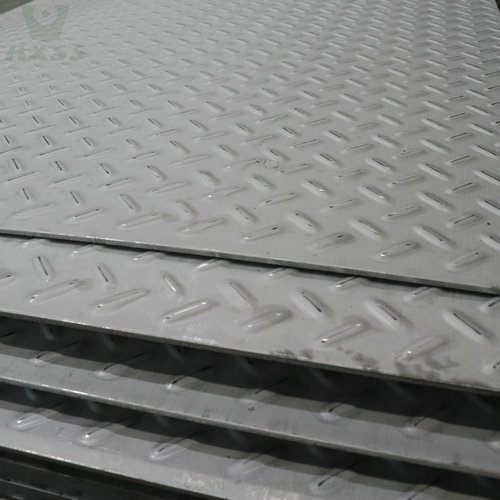

Stainless steel checkered plate also is called, stainless checkered plate, stainless checker plate steel, stainless steel diamond plate/diamond plate steel sheets, stainless steel tread plate, stainless steel chequer plate sheet, the aluminum also can be made to checker plate steel, the pattern includes lentil-shaped, diamond-shaped, round bean-shaped, dot-shaped, oblate mixed shape, etc.
Stainless steel tread plate is made of the hot-rolled stainless steel plate and has a more gripping surface than an ordinary stainless steel plate, so it is widely used on floors and low-rise walls.
The stainless steel chequer plate is made of cold-rolled plate and hot rolled stainless steel plate. Due to its high-quality modern and stylish appearance and excellent chemical properties, stainless steel diamond plates are often used in the food industry, construction, water heaters, bathtubs, and tableware.
Dimensions
| Thickness Inches | Size Inches | Wt. Per Sq. Ft. | Weight Per Plate |
| .125 | 48 x 96 | 6.15 | 197 |
| .125 | 48 x 120 | 6.15 | 246 |
| .1875 | 48 x 96 | 8.70 | 279 |
| .1875 | 48 x 120 | 8.70 | 348 |
| .1875 | 60 x 120 | 8.70 | 435 |
| .250 | 48 x 96 | 11.25 | 360 |
| .250 | 48 x 120 | 11.25 | 450 |
| .250 | 60 x 120 | 11.25 | 563 |
| .375 | 48 x 120 | 16.5 | 660 |
Huaxiao Stainless Checkered Plate Steel
As one of the stainless steel checker plate suppliers in China, we can provide different sizes and grades, and we have exported stainless steel diamond plates for 14 years at high quality and competitive prices. If you need any stainless steel chequer plates, please free to contact me for the steel checker plate sheet price, I will send you our competitive stainless steel checker plate sheet price for your reference, and we can send you free samples of the stainless steel chequer plate sheet and MTC, etc.
If you have any questions or you want to know more about the stainless chequer plate, you can send us an e-mail via [email protected] We are pleased to receive your E-mail and hope the cooperation with you.
If you need any stainless steel products, we can quote them for all. For more detailed products, please refer to our catalogs.
Production Video of Stainless Steel Chequer Plate Sheet
Feature of Stainless Steel Checker Plate
- High-temperature resistance.
- Corrosion resistance.
- Alkaline resistance.
- Anti-rust.
- Anti-skid.
- Durable and long life.
- Minimum maintenance.
Application of Stainless Chequer Plate

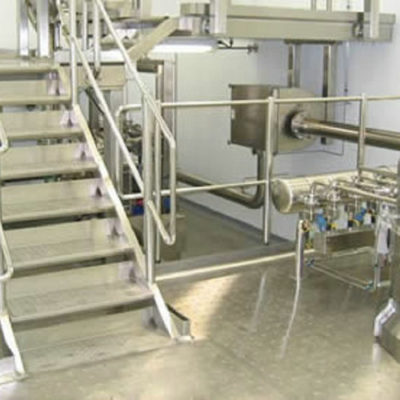

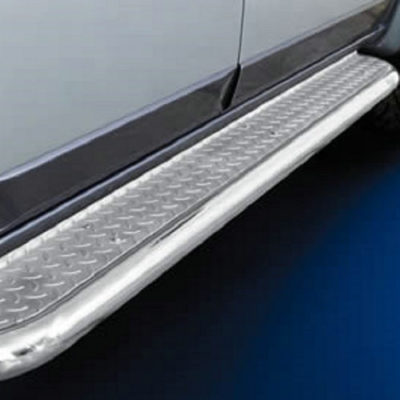

- Because of its surface rib bar, the non-slip effect can be used as the floor, factory escalator, working platform pedals, ship deck, car floor, and so on. The beautiful appearance of the stainless steel tread plate, non-slip, strengthens the performance, saving steel, and many other advantages, in transportation, construction, decoration, equipment around the floor, machinery, shipbuilding, and other fields have a wide range of applications. In general, with the use of squares on the mechanical properties of the board, mechanical performance is not high, so the quality of the main pattern is the pattern into flower rate, pattern height, and pattern height difference. Currently available on the market from the thickness of 1.0-6mm ranging from the width of the common1219 1250,1500 mm.

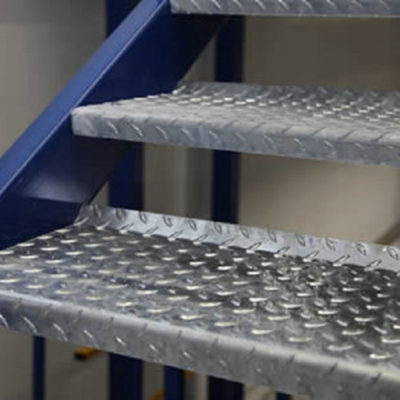

- Stainless checker plate steel is used in the workshop, large equipment, or ship walkways and stair pedals, and the surface of the diamond-shaped or lenticular pattern of steel. The size of the plate is based on the basic thickness (excluding the thickness of the rib).
- Pattern board height not less than 0.2 times the thickness of the substrate; intact pattern, the pattern allows a height of not more than half of the thickness tolerance of the local slight burr.

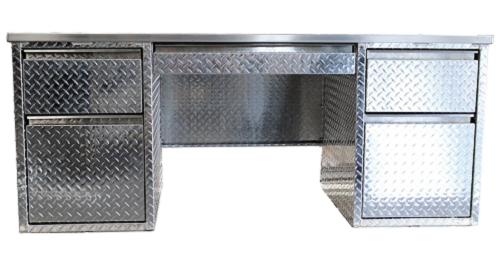

Stainless chequer plate used on the desk.
Hole Pattern of Stainless Steel Diamond Plate
Stainless Steel Diamond Plate Commonly used holes are round holes, square holes, long waist holes, triangle holes, diamond holes, etc., and other special-shaped holes such as louver holes, alligator mouth holes (tooth-shaped non-slip holes), bump holes, nail holes (fish scale holes), Cross-shaped hole, etc.
The production process for Stainless Steel Chequer Plate Sheet
Usually, there are 2 production processes for stainless chequer plates, one is hot rolled with the NO.1 finish, and the other is a cold press with NO.1 or 2B finish. Hot rolled is more expensive than cold press.
