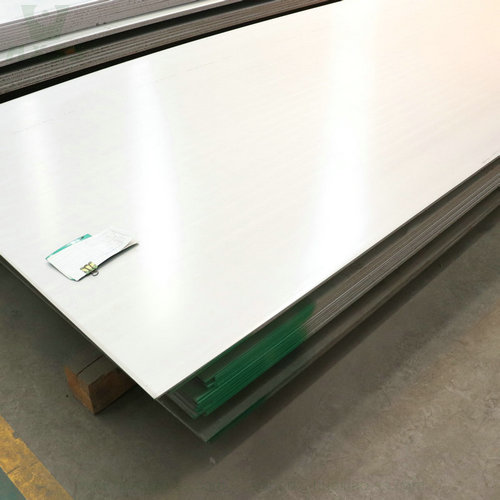

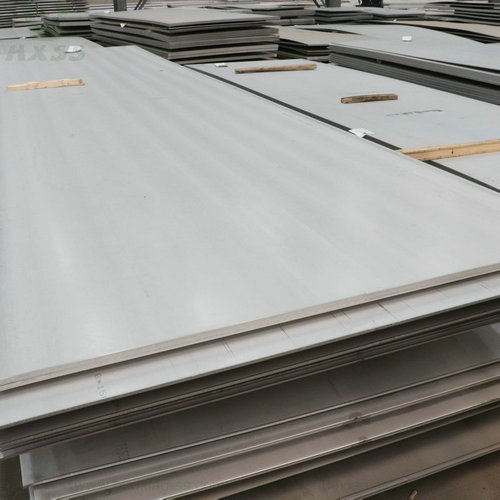

409/409L Hot Rolled Stainless Steel Plate
Hot rolling is based on slabs (mainly continuous casting billets), which are heated to form strips from roughing mills and finishing mills. The hot steel strip from the last rolling mill is cooled by laminar flow to a set temperature.
Contents [hide]
Hot Rolled 409L/409 Stainless Steel Plate Supplier | Manufacturer | Exporter
Huaxiao is 409L/409 stainless steel plate supplier, it has 15+ years of experience in manufacturing and exporting.
If you need 409L/409 stainless plate price, please free to contact us.
Huaxiao’s ss 409 price is very competitive, and the quality of the 409L/409l hot rolled stainless steel plate is first-class, we use advanced production equipment and skilled operators.
Huaxaio Supplier can provide free samples and test certifications of 409L/409 stainless plates, etc. Contact us for the hot rolled 409L/409 stainless plate price!
Huaxiao Capacity about Hot rolled 409L/409 Stainless Steel Plate, 409 409L HRP, PMP
409L/409 Stainless Steel Plates Specification: ASTM A240 / ASME SA240, etc.
Dimension Standard: JIS, AISI, ASTM, GB, DIN, EN, etc
Thickness: 3mm – 35mm, etc. For thinner thickness, please click Cold Rolled 409l/409 Stainless Steel Sheet.
Width: 600mm – 3500mm, the narrowed products pls check in strip products
Length: 500mm-12000mm, etc.
Pallet weight: 1.0MT – 3.0MT, etc.
Finish: NO.1, 1D, 2D, #1, hot rolled finished, black, Anneal and pickling, NO.4, NO.8, 8K, Mirror, Chequered, embossed, hairline, sandblast, etching, etc.
409L VS 409 Stainless Steel Plate
Type 409 Stainless Steel
Type 409 stainless steel (UNS S40900) is a stable ferritic stainless steel that has better oxidation and corrosion resistance than carbon steel. The ease of manufacturing combined with its corrosion resistance and economy obviously expands its application in automotive exhaust and other non-automotive applications. It has enhanced molding properties and is called “high performance” or “supertype” in the industry.
Type 409L Stainless Steel
409L grade (UNS S40903, EN 1.4512) is a low-carbon stable version of 409, composed of appropriate chromium, low carbon, and nitrogen components, and added titanium, all components are appropriate to make 409L grade products have certain performance, resistance Corrosion, weldability, and formability. Due to its low chromium content, grade 409L is another low-cost option for corrosion-resistant stainless steel.
409L grade has good heat resistance and corrosion resistance and is very suitable for non-corrosive or slightly corrosive environments or applications. It has excellent oxidation resistance and good welding performance at high temperatures and can be used in automobile exhaust pipes or petroleum equipment.
409L/409 Stainless Steel Plate Chemical Component :
| Grade | C | Si | Mn | S | P | Cr | Ni | Ti |
|---|---|---|---|---|---|---|---|---|
| 409 | ≤0.08 | ≤1.0 | ≤1.0 | ≤0.03 | ≤0.045 | 10.5～11.7 | 0.5 Max | 6xC – 0.75 |
| 409L | ≤0.03 | ≤1.0 | ≤1.0 | ≤0.03 | ≤0.045 | 10.5～11.7 | 0.5 Max | 6xC – 0.75 |
409L/409 Stainless Steel Plate Mechanical Property :
| Grade | Tensile Strength | Yield Strength | Elongation (%) | Hardness | Bending Angle |
|---|---|---|---|---|---|
| 409L/409 | > 380 Mpa | >205 Mpa | > 20% | < HRB88 | 180 degree |
Stainless Steel TP409/409L Stainless Plates Equivalent Grades
| Grade | WERKSTOFF NR. | AISI | UNS | AFNOR | BS | JIS |
|---|---|---|---|---|---|---|
| SS 409 | 1.4512 | 409 | S40900 | Z3CT12 | 409 S 19 | SUS 409 |
| SS 409L | 1.4512 | 409L | S40903 | – | – | SUS 409L |
Features of 409L/409 Stainless Steel Plate
- Corrosion resistance
- Anti-oxidation
- Excellent resistance to high temperature, exhaust gas, and atmospheric corrosion
- Heat treatment
- Suitable for welding
- Good flexibility and excellent formability
- low cost
Application of 409L/409 Stainless Steel Plate
- Suitable for paper and pulp companies
- High voltage applications
- The oil and gas industry
- Chemical refineries
- High-temperature applications

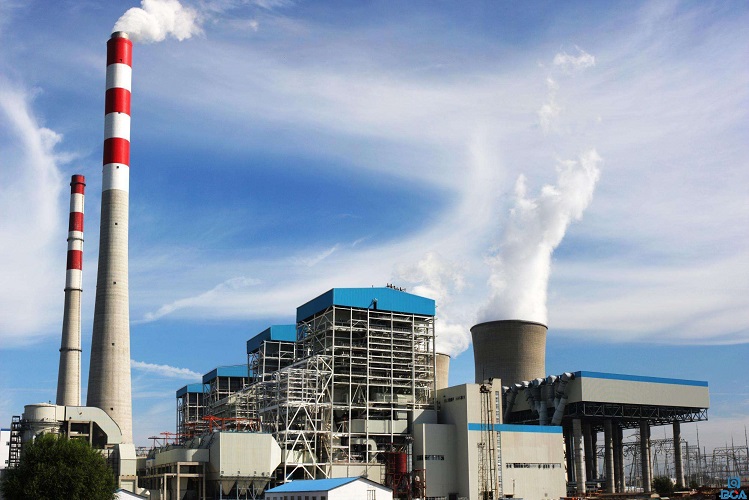

- Nuclear power plants
- Food processing and dairy industry
- For boilers and heat exchangers
Comparison 410/410s and 409L/409 Stainless Plate
Type 409 stainless steel plate and 410 stainless steel are all high-strength stainless steel, (including chromium) but the temperature resistance is generally only about 500-750. This type of steel has the lowest chromium content of all stainless steel and is therefore inexpensive, making it ideal for use in environments where there is no corrosion or slight corrosion and partial slight rust is allowed. The type 409 stainless steel was originally designed for use in automotive exhaust system silencers (external corrosion). 410L stainless steel is commonly used in containers, buses, and long-distance large cars, and has recently been used as a frame for LCD monitors.
The difference between stainless steel cold rolled plate and hot rolled plate
Cold rolling: hot-rolled steel coil is used as raw material, and the scale is removed by pickling, followed by cold continuous rolling. The finished product is rolled hard roll. The cold work hardening caused by continuous cold deformation makes the hardness and hardness of the rolled hard roll rise and tough. Plastic indicators have fallen,
Therefore, the punching performance will deteriorate and can only be used for parts that are simply deformed. Rolled hard rolls can be used as raw materials for hot-dip galvanizing plants because the hot-dip galvanizing units are provided with an annealing line.
The hard roll weight is generally 6~13.5 tons, and the steel coil is at normal temperature.
The hot rolled pickled rolls are continuously rolled. The inner diameter is 610mm.
Product features: Because it has not been annealed, its hardness is very high (HRB is greater than 90), and the machining performance is extremely poor. Only a simple directional bending process of fewer than 90 degrees (perpendicular to the winding direction) can be performed.
To put it simply, cold rolling is processed and rolled on the basis of hot-rolled coils, generally in the hot rolling— pickling—cold rolling process.
Hot rolling is based on slabs (mainly continuous casting billets), which are heated to form strips from roughing mills and finishing mills. The hot steel strip from the last rolling mill is cooled by laminar flow to a set temperature.
Rolled into a steel coil by a coiler, the cooled steel coil, after different finishing lines according to different needs of users (flat, straightening, crosscutting or slitting, inspection, weighing, packaging, and marking) Etc.) to become a steel plate,
Flat roll and slitting steel strip products. To put it simply, a billet is finely rolled after being heated (that is, the red hot, hot steel block in the TV), and then trimmed and corrected to become a steel plate. This is called hot rolling.
