We will take you to understand the stainless steel wire mesh production line. At Huaxiao Metal, we are committed to providing customers with high-quality stainless steel wire mesh solutions.
As a leading stainless steel wire mesh supplier, we offer a variety of stainless steel wire mesh types to meet various application needs. Whether you need stainless steel wire mesh for filtering, screening, or decoration, we can provide you with the best choice.
- Material: 304, 304L, 316, 316L.
- Weaving: plain weave and twill weave.
- Performance: acid and alkali resistance, high-temperature resistance, strong tension, and wear resistance.
- Uses: used for screening and filtration under acid and alkali conditions, as mud mesh in the petroleum industry, as sieve mesh in the chemical fiber industry, and as pickling mesh in the electroplating industry.
Our factory can design and manufacture various types of products according to user needs, and also undertake processing of supplied materials.
| Mesh Count | Wire Diameter | Mesh Size | Open Area（%） | Weaving Method | ||
| Inch | Mm | Inch | Mm | |||
| 1X1 | 0.08 | 2.03 | 0.92 | 23.37 | 84.6 | Plain |
| 2X2 | 0.063 | 1.6 | 0.437 | 11.1 | 76.4 | Plain |
| 3X3 | 0.054 | 1.37 | 0.279 | 7.09 | 70.1 | Plain |
| 4X4 | 0.063 | 1.6 | 0.187 | 4.75 | 56 | Plain |
| 4X4 | 0.047 | 1.19 | 0.203 | 5.16 | 65.9 | Plain |
| 5X5 | 0.041 | 1.04 | 0.159 | 4.04 | 63.2 | Plain |
| 6X6 | 0.035 | 0.89 | 0.132 | 3.35 | 62.7 | Plain |
| 8X8 | 0.028 | 0.71 | 0.097 | 2.46 | 60.2 | Plain |
| 10X10 | 0.025 | 0.64 | 0.075 | 1.91 | 56.3 | Plain |
| 10X10 | 0.02 | 0.51 | 0.08 | 2.03 | 64 | Plain |
| 12X12 | 0.023 | 0.584 | 0.06 | 1.52 | 51.8 | Plain |
| 12X12 | 0.02 | 0.508 | 0.063 | 1.6 | 57.2 | Plain |
| 14X14 | 0.023 | 0.584 | 0.048 | 1.22 | 45.2 | Plain |
| 14X14 | 0.02 | 0.508 | 0.051 | 1.3 | 51 | Plain |
| 16X16 | 0.018 | 0.457 | 0.0445 | 1.13 | 50.7 | Plain |
| 18X18 | 0.017 | 0.432 | 0.0386 | 0.98 | 48.3 | Plain |
| 20X20 | 0.02 | 0.508 | 0.03 | 0.76 | 36 | Plain |
| 20X20 | 0.016 | 0.406 | 0.034 | 0.86 | 46.2 | Plain |
| 24X24 | 0.014 | 0.356 | 0.0277 | 0.7 | 44.2 | Plain |
| 30X30 | 0.013 | 0.33 | 0.0203 | 0.52 | 37.1 | Plain |
| 30X30 | 0.012 | 0.305 | 0.0213 | 0.54 | 40.8 | Plain |
| 30X30 | 0.009 | 0.229 | 0.0243 | 0.62 | 53.1 | Plain |
| 35X35 | 0.011 | 0.279 | 0.0176 | 0.45 | 37.9 | Plain |
| 40X40 | 0.01 | 0.254 | 0.015 | 0.38 | 36 | Plain |
| 50X50 | 0.009 | 0.229 | 0.011 | 0.28 | 30.3 | Plain |
| 50X50 | 0.008 | 0.203 | 0.012 | 0.31 | 36 | Plain |
| 60X60 | 0.0075 | 0.191 | 0.0092 | 0.23 | 30.5 | Plain |
| 60X60 | 0.007 | 0.178 | 0.0097 | 0.25 | 33.9 | Plain |
| 70X70 | 0.0065 | 0.165 | 0.0078 | 0.2 | 29.8 | Plain |
| 80X80 | 0.0055 | 0.14 | 0.007 | 0.18 | 31.4 | Plain |
| 90X90 | 0.005 | 0.127 | 0.0061 | 0.16 | 30.1 | Plain |
| 100X100 | 0.0045 | 0.114 | 0.0055 | 0.14 | 30.3 | Plain |
| 100X100 | 0.004 | 0.102 | 0.006 | 0.15 | 36 | Plain |
| 100X100 | 0.0035 | 0.089 | 0.0065 | 0.17 | 42.3 | Plain |
| 120X120 | 0.0037 | 0.094 | 0.0064 | 0.1626 | 30.7 | Plain |
| 150X150 | 0.0026 | 0.066 | 0.0041 | 0.1041 | 37.4 | Plain |
| 180X180 | 0.0023 | 0.0584 | 0.0033 | 0.0838 | 34.7 | Plain |
| 200X200 | 0.0021 | 0.0533 | 0.0029 | 0.0737 | 33.6 | Plain |
| 250X250 | 0.0016 | 0.0406 | 0.0024 | 0.061 | 36 | Twill |
| 270X270 | 0.0016 | 0.0406 | 0.0021 | 0.0533 | 32.2 | Twill |
| 300X300 | 0.0051 | 0.0381 | 0.0018 | 0.0457 | 29.7 | Twill |
| 325X325 | 0.0014 | 0.0356 | 0.0017 | 0.0432 | 30 | Twill |
| 400X400 | 0.0012 | 0.003 | 0.0013 | 0.034 | 25 | Twill |
| 500X500 | 0.001 | 0.0254 | 0.001 | 0.0254 | 25 | Twill |
| 635X635 | 0.0008 | 0.0203 | 0.0008 | 0.0203 | 24 | Twill |
Stainless Steel Wire Mesh Production Line
Stainless Steel Wire Mesh Production Line
1. Raw Material Preparation
● Stainless steel wire: The main raw material for producing stainless steel mesh is stainless steel wire. Usually, these stainless steel wires are made through melting and drawing processes.
2. Wire Drawing
● Wire drawing machine: The stainless steel wire is further stretched through the wire drawing machine to make fine wires of different diameters. The wire drawing machine completes this process by gradually reducing the diameter of the die.
3. Weaving or Welding
● Weaving machine:
○ Plain weaving machine: used to weave plain mesh, usually suitable for the production of standard mesh.
○ Twill weaving machine: used to weave twill mesh, suitable for meshes that require higher strength and stability.
● Welding machine:
○ Spot welding machine: used to weld the crossed wires together through electric welding points to form a mesh structure. Suitable for meshes that require higher strength and stability.
4. Correction and Cutting
● Correction machine: used to correct the flatness and size of the mesh to ensure the quality of the final product.
● Cutting machine: Cut the produced mesh into the required size and shape according to demand.
5. Post-Processing
● Pickling and passivation equipment: used to clean stainless steel mesh, remove oxides and impurities generated during the production process, and improve corrosion resistance.
● Coating equipment (if necessary): additional coating treatment is applied to the mesh to improve corrosion resistance or aesthetics.
6. Quality Inspection and Packaging
● Quality inspection equipment: Check the specifications, strength, and other physical properties of the mesh to ensure compliance with standards.
● Packaging equipment: Pack the finished stainless steel mesh for transportation and storage.
What are the Types of Stainless Steel Mesh?

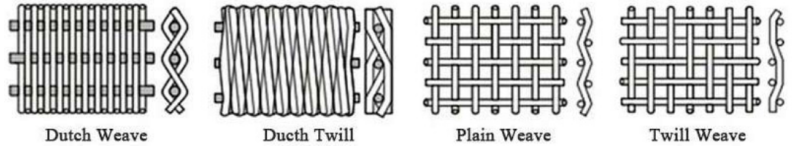

1. Woven Mesh
● Plain weave mesh: the most common weaving method, suitable for filtering and screening applications. The grid structure is simple, and the staggered wires form a uniform mesh.
● Twill weave mesh: The wires are staggered and woven at a certain angle, which increases the strength and stability of the mesh and is often used in higher-intensity filtering or screening applications.
2. Welded Mesh
● Spot welded mesh: The crossed wires are connected by spot welding, usually used for structural reinforcement and safety nets. Spot-welded mesh has high strength and is suitable for various engineering and construction projects.
● Automatically welded mesh: welded by automated equipment, usually used for large-scale production, suitable for products that require consistent quality.
3. Perforated Mesh
● Round hole mesh: punch holes on stainless steel plate through a punching machine to form a regular round hole mesh. Widely used in architectural decoration, screening, and filtration.
● Square hole mesh: similar to round hole mesh, but the hole shape is square. Suitable for applications that require uniform aperture.
● Long hole mesh: the hole shape is long strips, suitable for special screening or filtration needs.

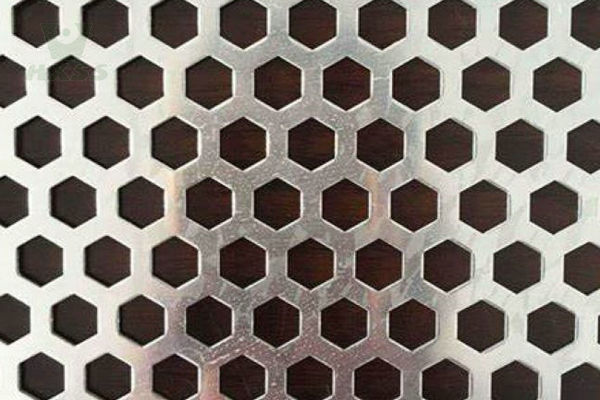

Hexagonal Hole Perforated Plates
4. Expanded Mesh
● Expanded metal mesh: formed by expanding metal plates to form a mesh structure, usually used for architectural decoration and reinforcement. Has good strength and durability.
5. Crimped Mesh
● Crimped mesh: manufactured by rolling process, processed into a mesh structure by cold rolling or hot rolling process. Suitable for protective nets, fence nets, etc.
6. Wire Mesh
● Microporous mesh: has extremely small apertures and is often used for high-precision filtration, screening, and laboratory applications.
● Wire mesh screen: used in various industrial screening and filtering applications, with pore sizes ranging from large to small.
7. Filter Mesh
● Filter cloth: used for liquid or gas filtration, usually with a multi-layer woven structure to improve filtration efficiency.
● Filter cartridge: a cylindrical mesh designed specifically for liquid or gas filtration, often used in industrial filters.
8. Decorative Mesh
● Decorative mesh: used for construction and interior decoration, with a beautiful appearance and good corrosion resistance, often used for partitions, wall decoration, etc.
9. Protective Mesh
● Protective mesh: used to prevent people or objects from falling, colliding, etc., usually used in construction sites, stadiums, and other places.
Application Areas of Stainless Steel Wire Mesh
● Construction industry: used for protection, decoration, and reinforcement.
● Industrial production: plays an important role in screening, filtration, and separation processes.
● Home decoration: enhances the visual effects of indoor and outdoor spaces.
● Agricultural field: used to protect crops and animals.
-

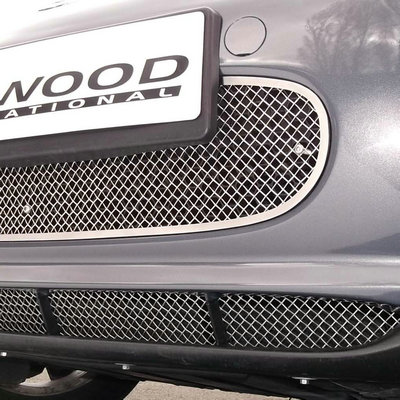

- Ss Wire Mesh Car
-

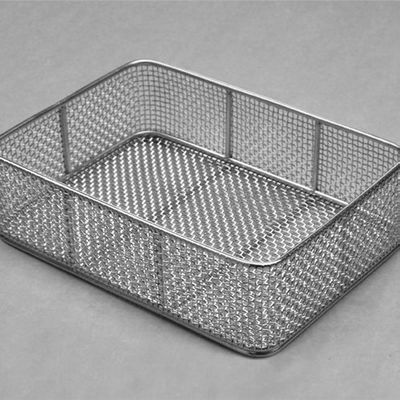

- Ss Wire Mesh Basket
-

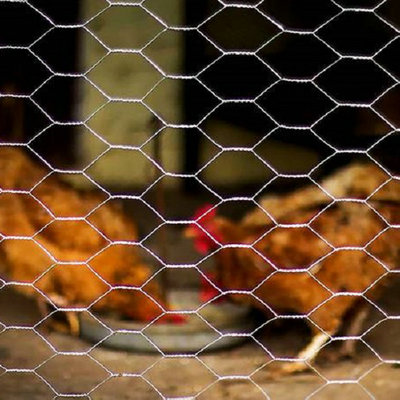

- Ss Chicken Wire Mesh
-

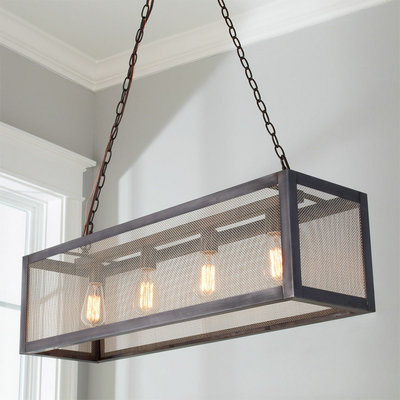

- Mesh Island Chandelier
-

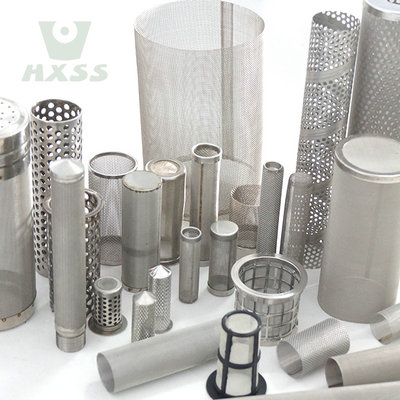

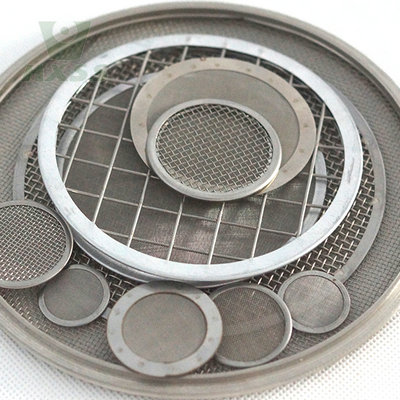

- Stainless Steel Wire Mesh Application
-
- Stainless Steel Wire Mesh Application
How to Choose the Right Stainless Steel Wire Mesh
When choosing the right stainless steel mesh, you need to consider the following factors:
1. Application scenario: Different types of stainless steel mesh are suitable for different application scenarios, such as architectural decoration, industrial filtration, etc.
2. Aperture size: Choose the appropriate aperture size according to the filtering or screening needs.
3. Material quality: Choose high-quality stainless steel materials to ensure the durability and corrosion resistance of the mesh.
4. Mesh density: Choose the appropriate mesh density according to specific needs to meet the filtering effect.
Stainless Steel Wire Mesh Price
Our stainless steel wire price is competitive, and the specific price depends on the following factors:
● Wire diameter: The price of wires with different diameters is different.
● Mesh type: Different types such as woven mesh and welded mesh have different prices.
● Order quantity: Bulk purchases usually enjoy discounts.
● Special requirements: Special specifications or customized products may affect the price.
Why Choose Huaxiao Metal as Your Stainless Steel Mesh Supplier?
At Huaxiao Metal, we are customer-centric and committed to providing high-quality stainless steel mesh and excellent service. As a leading stainless steel wire mesh supplier, we not only provide a wide range of stainless wire mesh products but also ensure that each product meets strict quality standards. Our professional team will provide personalized solutions based on your needs and provide you with competitive stainless steel wire prices.
Choose Huaxiao Metal, you will enjoy:
● High-quality products: We use top-grade stainless steel materials and advanced production processes to ensure that the products are durable and corrosion-resistant.
● Professional services: Our team has rich experience and can provide you with precise technical support and consulting services.
● Competitive prices: We offer market-competitive prices to ensure that you get the best value within your budget.
● Fast delivery: We promise to deliver on time to meet your production and project needs.
Whether you need stainless steel mesh for industrial applications or architectural decoration, Huaxiao Metal will be your trusted partner. Please contact us now and we will provide you with a quote within 24 hours!
